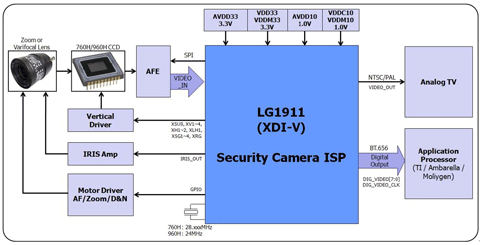

| High Resolution Affordable Analog 960H/760H CCD Camera System |
|
| Features |
| • Input : 960H/760H NTSC/PAL CCD sensor (Sony/Sharp) |
| • Output : NTSC/PAL CVBS, ITU-R.656 digital output (36MHz/28.636MHz/28.375MHz) |
| • Serial interface for AFE |
| • 12bit video processing |
| • True WDR for dual scan CCD and single scan CCD |
| • 3D noise reduction (Control level : 100 steps) |
| • On screen dsplay(OSD) with multi-language (Upto 15 languages) |
| • Digital slow shutter (DSS) or sens-up upto x512 |
| • Privacy mask 14 zones (8 rectangels, 4 circles, 2 polygons) with mosaic and transparency |
| • Bad pixel correction (Static: 256 points, dynamic:∞) |
| • Digital zoom with high quality image upto 16x (Full view in picture-in-picture) |
| • Digital effect (H/V Mirror) |
| • Auto exposure, auto white balance |
| • Auto focus (For a dedicated customer only) |
| • On-chip optical detector for AF data |
| • On-chip NTSC/PAL video encoder |
| • On-chip 16bit RISC CPU with 512KB flash memory |
| • On-chip frame memory for 3D noise reduction & digital zoom |
| • On-chip 10bit video and IRIS D/A converter |
| • On-chip 8 ADCs for AD keys and photo sensors |
| • Programmable timing generator |
• Motion detection (8 regions) with motion display |
| • Resolution improvement engine |
| • Serial communication (UART/I2C/SPI) |
| • Coaxial communication (Pelco-C) |
| • Supports external sync - digital line-lock function (Built-in pulse detection & phase comparator) |
| • True progressive scan (Double scan CCD only) |
| • 144 pins, 10x10 FBGA package |
| |
